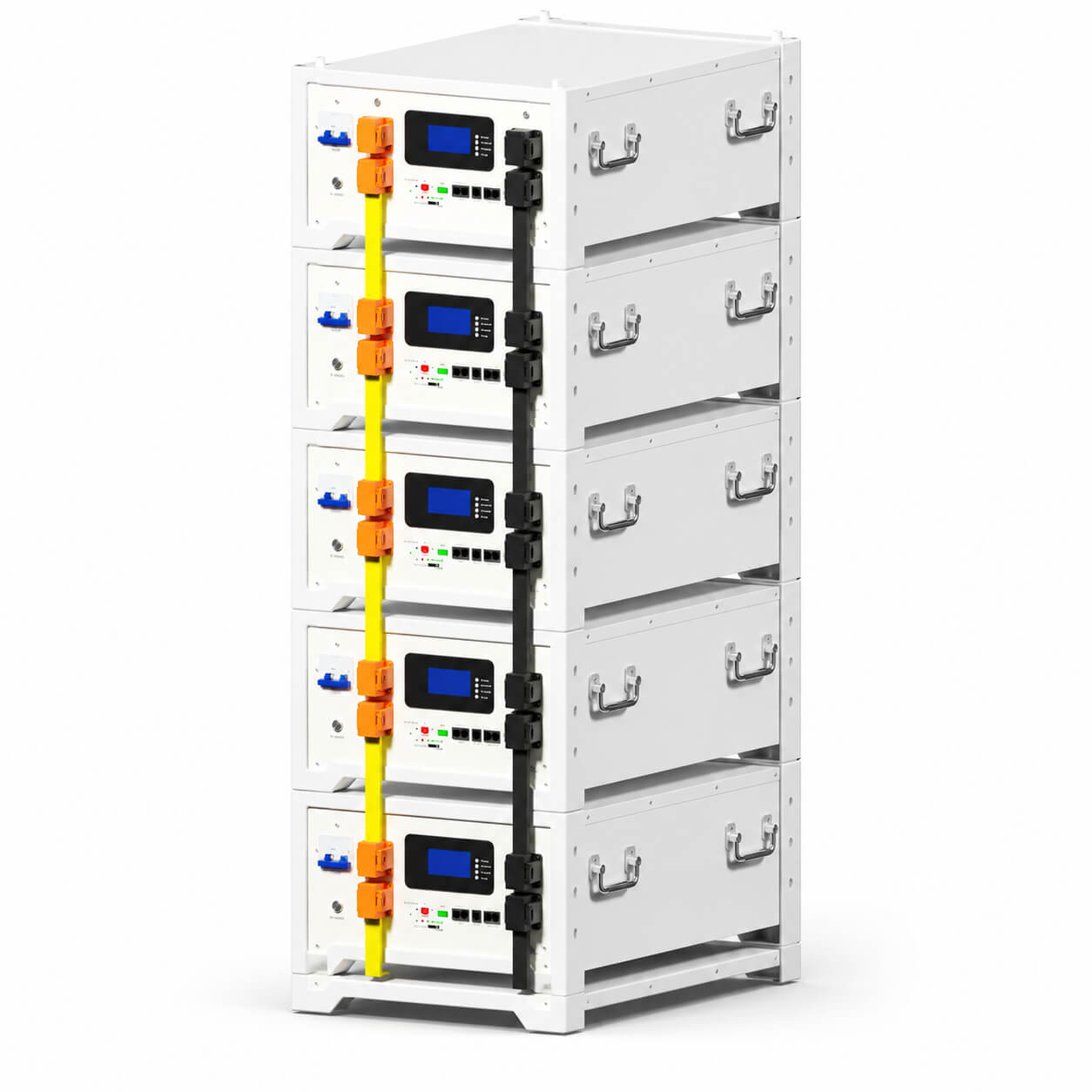

The GLR-314 is a 51.2V 314Ah low-voltage LiFePO4 battery module designed for residential and commercial energy storage applications. With 16.08kWh energy per module, modular expansion capability, intelligent BMS protection and more than 6000 cycles, it provides a reliable and flexible solution for solar energy storage, backup power and ESS projects.
51.2V 314Ah / 16.08kWh per battery module
High-cycle-life LiFePO4 battery technology
>6000 cycles at 90% DOD
Up to 15 years design lifespan
Recommended charge/discharge current: 157A
Modular configuration from approximately 32.15kWh to 257.22kWh
Built-in intelligent BMS protection
RS485 / RS232 / CAN communication
Compatible with Growatt, Solis, Goodwe, Sol-Ark, SRNE, Deye and other inverters
Suitable for solar storage, backup power and energy storage systems
Main Specifications
| Specification | GLR-314 |
|---|---|
| Battery Type | LiFePO4 |
| Rated Voltage | 51.2V |
| Rated Capacity | 314Ah |
| Rated Energy | 16.08kWh |
| Charging Current | 157A |
| Discharge Current | 157A |
| Operating Voltage | 44.8–57.6V |
| Cycle Life | >6000 Cycles |
| Communication | RS485 / RS232 / CAN |
| Protection Rating | IP20 |
| Design Life | 15 Years |
Applications
Ideal for home solar energy storage, off-grid systems, hybrid solar systems, backup power systems, telecom backup power and small commercial energy storage projects.
